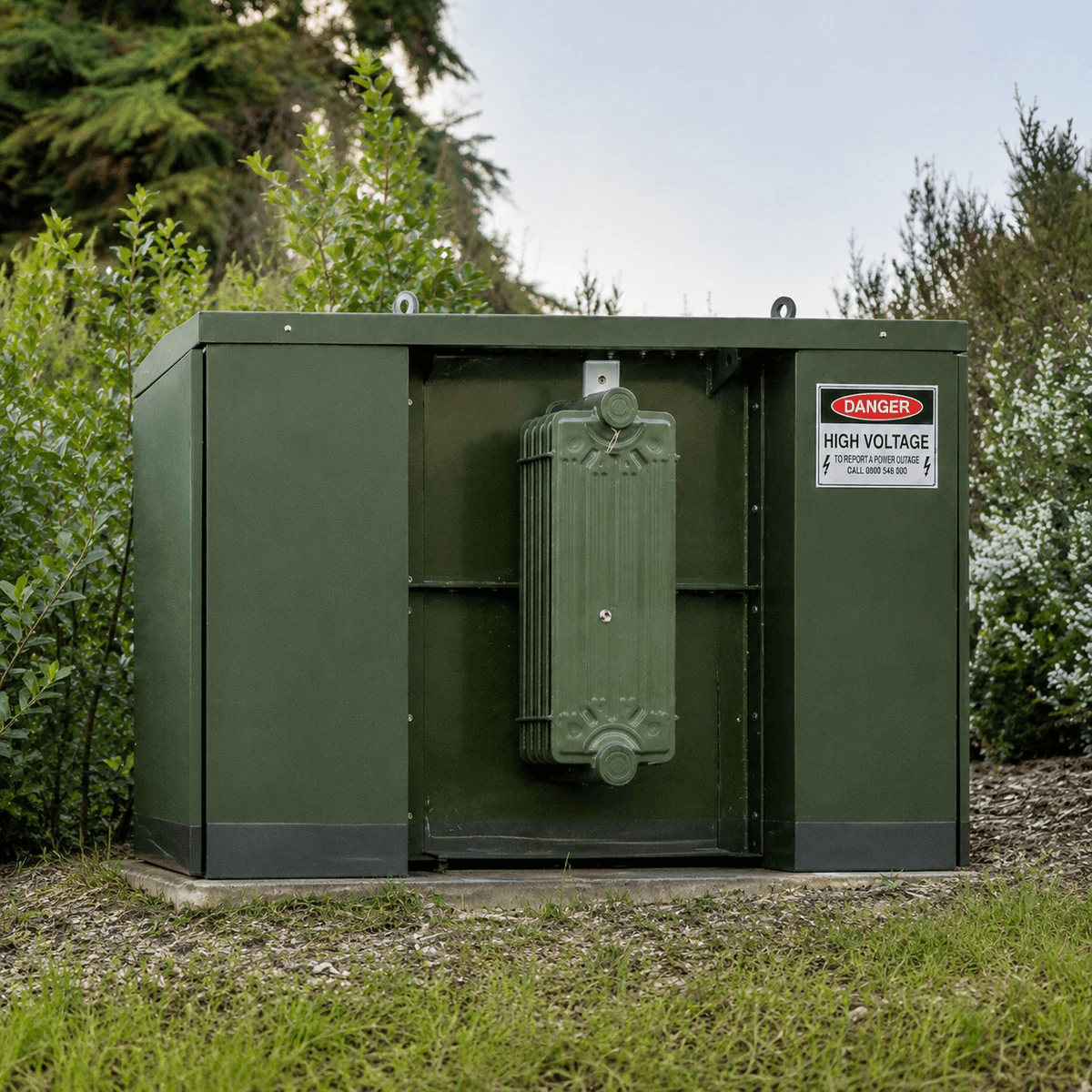

Series A - Distribution Transformer with Integrated HV and LV Cabinets
Compact oil-immersed distribution transformer designed with integrated HV and LV cabinets positioned at opposite ends of the
transformer section.The integrated arrangement provides a practical and space-efficient solution for underground distribution networks, with convenient
access to HV and LV cabinets for cable termination and LV frame installation.Standard Ratings: 100 kVA, 300 kVA, 500 kVA, 750 kVA, 1,000 kVA, 1,500 kVA, 2,000 kVA
Primary Voltages: 11 kV, 22 kV and 33 kV
Secondary Voltage: 415 V (0.415 kV)
Applications: Residential subdivisions and commercial developments
Series B – Distribution Transformer with Raised HV and LV Cable Boxes
Oil-immersed transformer with raised HV and LV cable boxes for convenient cable entry and termination.
Standard Ratings: 500 kVA, 750 kVA, 1,000 kVA, 1,500 kVA, 2,000 kVA, 2,500 kVA, 3,000 kVA, 3,500 kVA, 4,000 kVA, 4,500 kVA, 5,000 kVA
Primary Voltages: 11 kV, 22 kV and 33 kV
Secondary Voltage: 415 V (0.415 kV)
Applications: Industrial facilities, cold storage and commercial developments
Series C – Distribution Transformer with Front access HV and LV Cabinets
Compact oil-immersed distribution transformer designed with front-access HV and LV cabinets.
Standard Ratings: 100 kVA, 300 kVA, 500 kVA, 750 kVA, 1,000 kVA, 1,500 kVA, 2,000 kVA
Primary Voltages: 11 kV, 22 kV and 33 kV
Secondary Voltage: 415 V (0.415 kV)
Applications: Residential subdivisions and commercial developments
Pole-Mounted Distribution Transformers

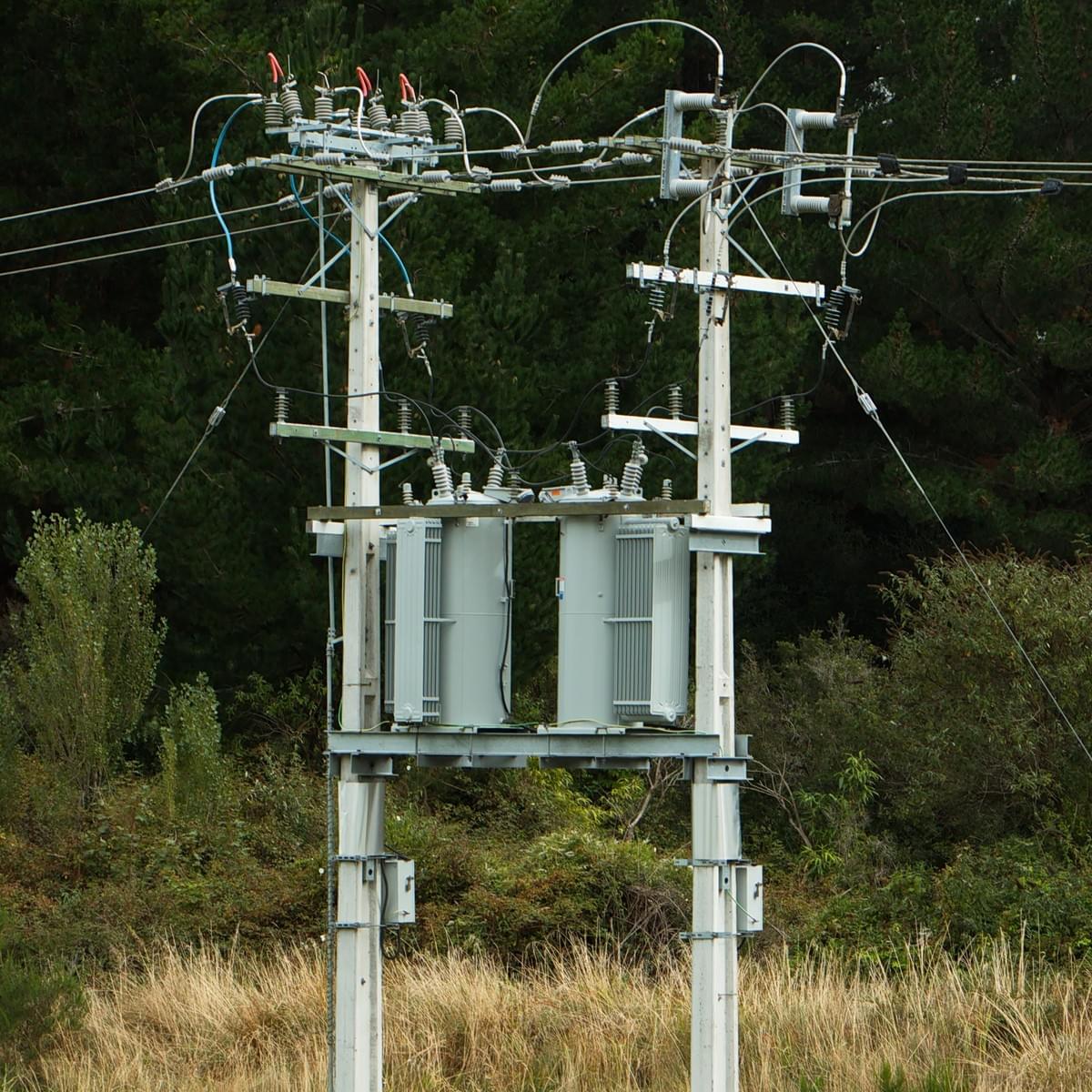

Pole-Mounted Distribution Transformer
A compact oil-immersed distribution transformer designed for installation on utility poles in the overhead distribution networks.
- Standard Ratings: 50 kVA, 100 kVA, 200 kVA, 300 kVA, 500 kVA
- Primary Voltages: 11 kV, 22 kV and 33 kV.
- Secondary Voltage: 415 V (0.415 kV)
Applications: Overhead rural distribution networks
A range of additional optional features and configurations are available to suit specific project requirements. Please contact us to discuss your requirements.
Cast-Resin Dry-Type Distribution Transformers

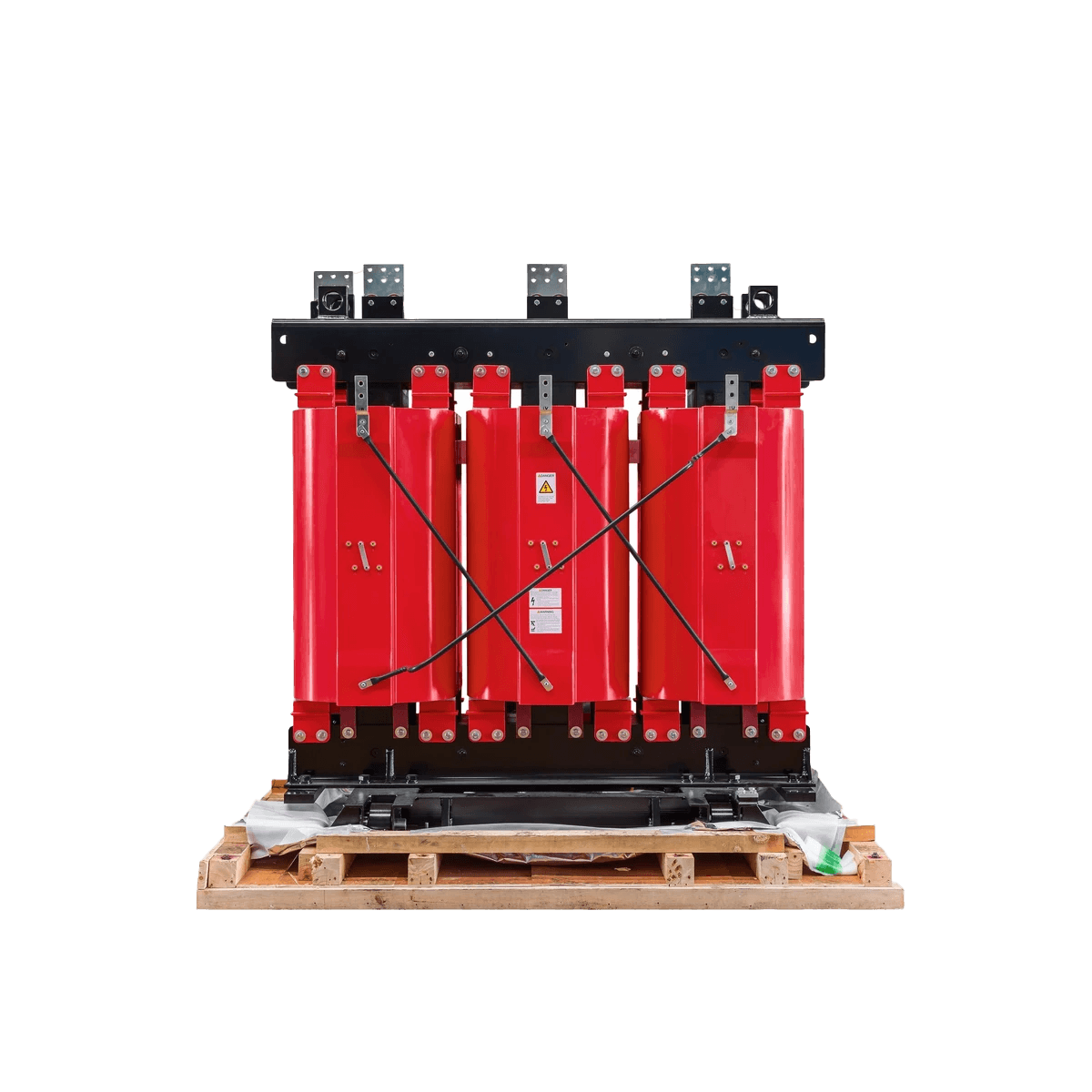

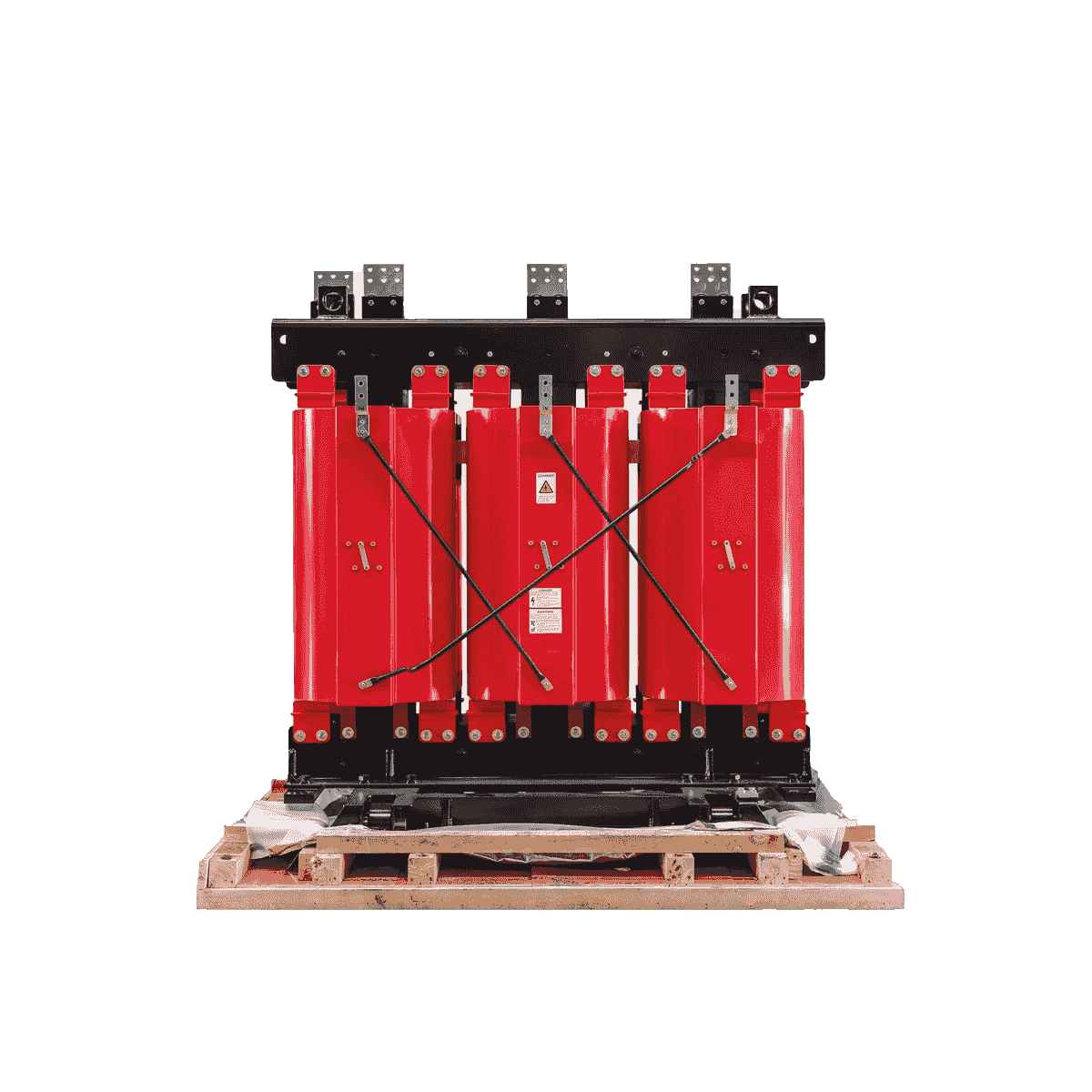

Cast Resin Dry-Type Distribution Transformer
Cast resin dry-type distribution transformers are designed to provide a reliable and low-maintenance solution for applications where fire safety is a critical consideration.
- Standard Ratings: 100 kVA, 300 kVA, 500 kVA, 750 kVA, 1000 kVA, 1500 kVA, 2000 kVA
- Primary Voltages: 11 kV, 22 kV and 33 kV
- Secondary Voltage: 415 V (0.415 kV)
Applications: Hospitals, data centres, high rise buildings, commercial developments.
Solar PV and Battery Energy Storage (BESS) Step-Up Transformers
Solar PV & BESS Step-Up Transformers
Solar PV and BESS (Battery Energy Storage System) step-up transformers are designed to step up the low-voltage output from solar PV and battery energy storage systems to the required medium voltage providing a reliable connection between the generation system and the electricity distributors network.
Applications: Solar farms, grid connected generation projects.
A range of transformer ratings, voltage configurations and design options are available to suit specific Solar PV and BESS project requirements. Please contact us to discuss your requirements.
Prefabricated Box-Type Transformer Substations

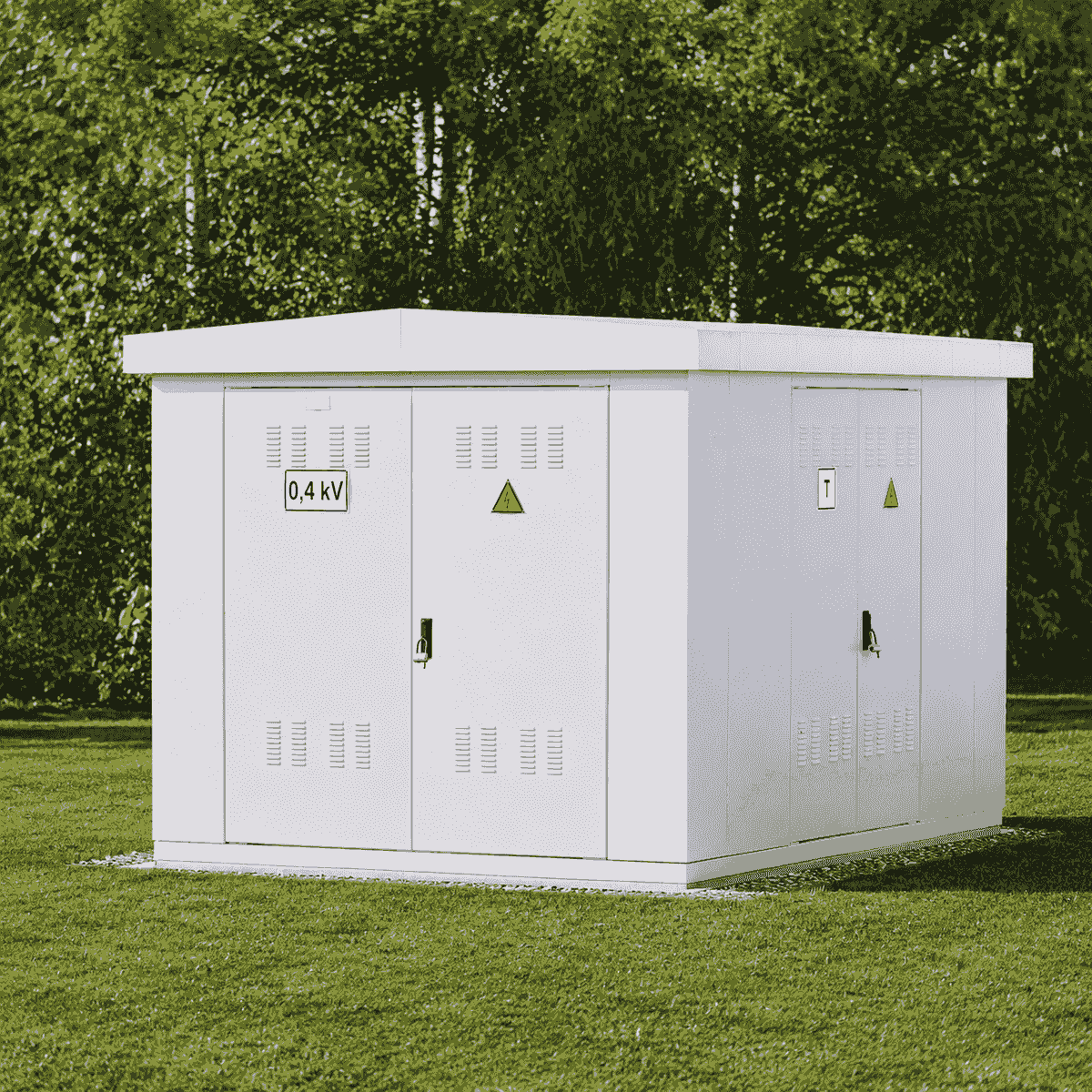

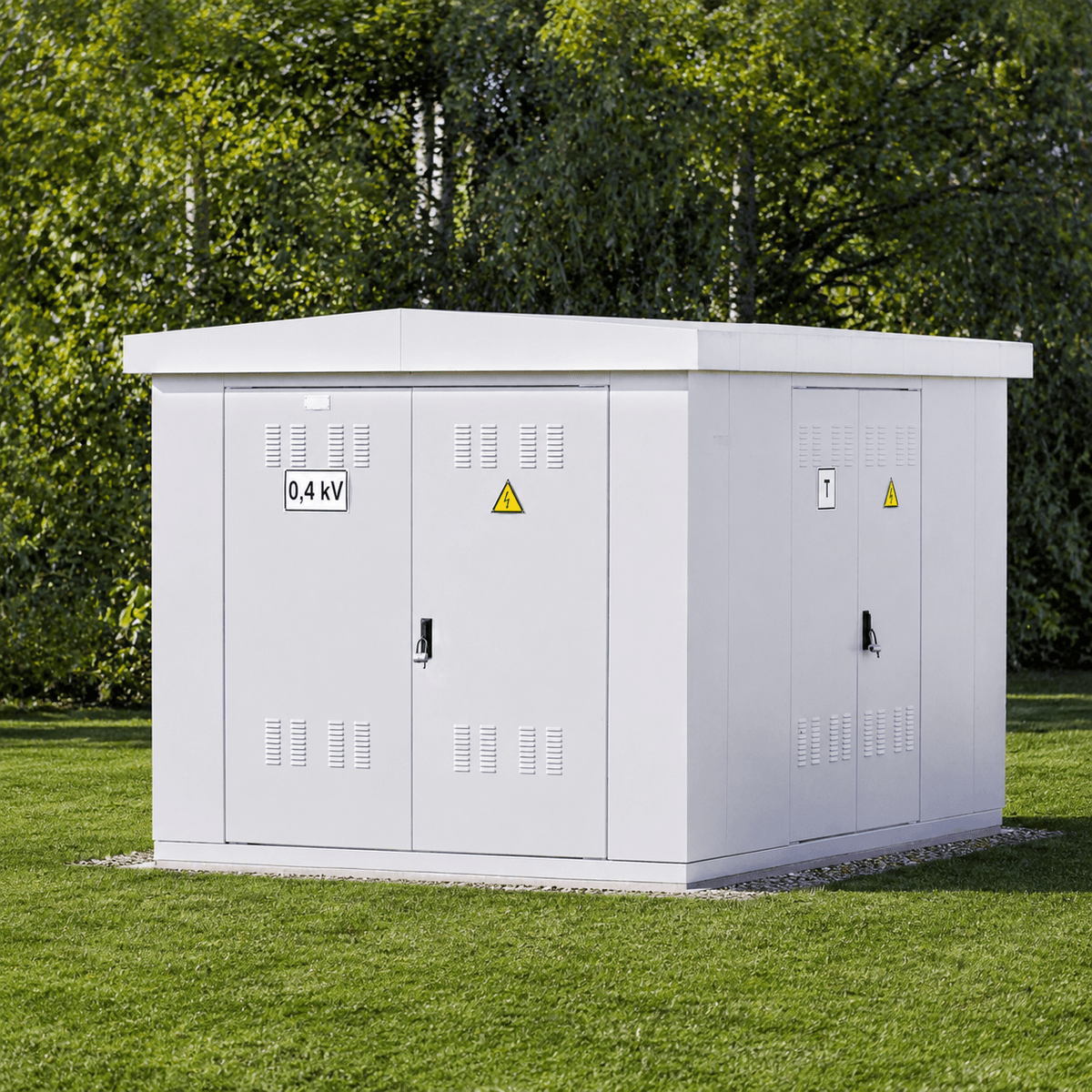

Prefabricated Box-Type Substations
Prefabricated box-type substations provide a compact and integrated outdoor rated solution incorporating a distribution oil filled or dry type transformer with dedicated space for low-voltage main switchboard.
The box type substations can be configured to suit specific project requirements. Please contact us to discuss your requirements.
